| Type |

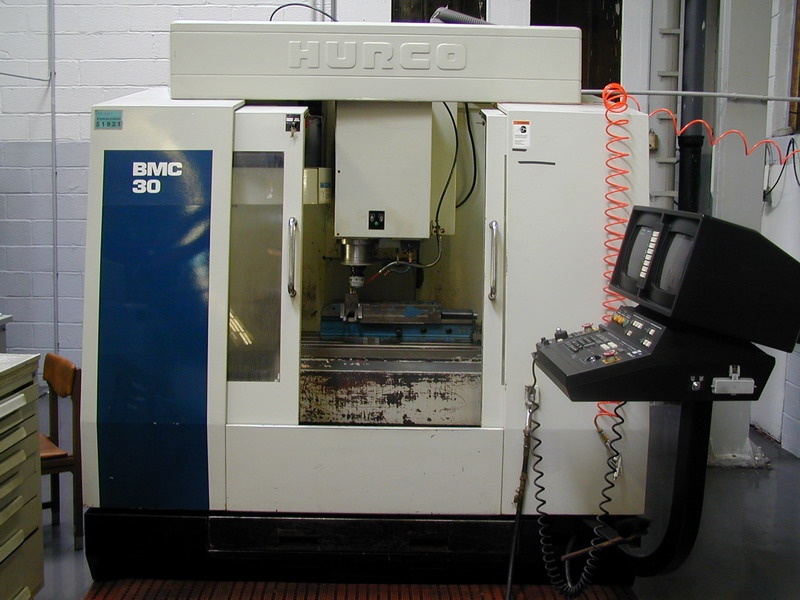

3-axis CNC Machine |
| Model |
BMC30M |
| Manufacturer |
HURCO |
| Year of Manufacture |
1996 |
|
|
|
Specifications - CNC Vertical Milling Machine
| Working area (mm) |
760 x 460 x 610 |
| Motor power (kW) |
7.5 |
| Spindle speed (min-1) |
80 - 8000 |
| Feed rate (mm/min)) |
3 - 11400 ... high speed stroke |
| |
3 - 7600 ... stroke |
| Table load capacity (kg) |
500 |
| Controller |
Dialog |
Other Characteristics
3-axes CNC machine
Torque 143 Nm at 600 min-1, tool shank ISO40, 24 tool magazine for automatic tool change, positioning accuracy +/- 0.01, repeatability accuracy +/- 0.005 |
