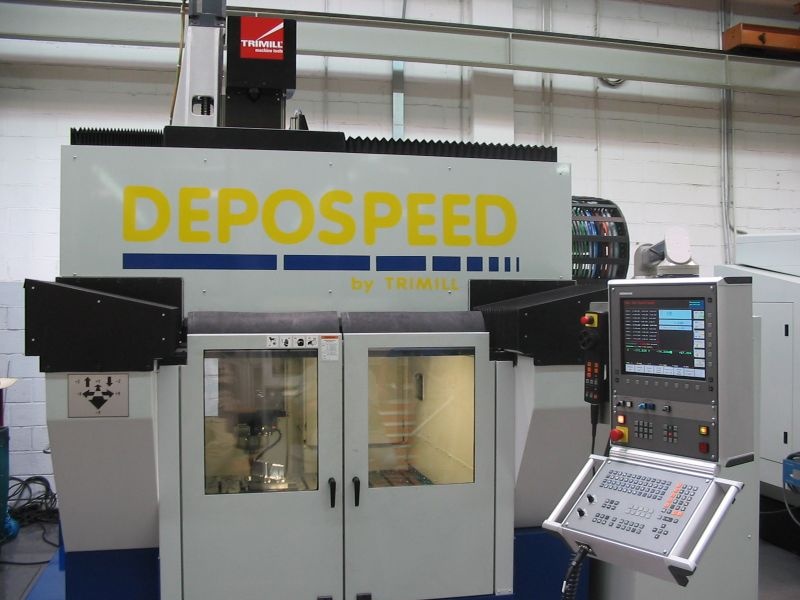

| Type |
3-axis CNC Machine ( 2 machines ) |
| Model |
SPEED 1011 |
| Manufacturer |
DEPO |
| Year of Manufacture |
2004, 2007 |
|
|
|
Specifications - CNC Horizontal Machining Centre
| Working area (mm) |
1100 x 1000 x 700 |
| Motor power (kW) |
25 |
| Max. workpiece size (mm) |
1300 x 1300 |
| Spindle speed (min-1) |
1 – 14000 |
| Feed rate (mm/min) |
1 – 20.000 ... stroke |
| |
42.000 ... high speed stroke |
| Table load capacity (kg) |
6.000 |
| Controller |
CNC HEIDENHAIN iTNC530 |
Other Characteristics
Torque 170 Nm, tool shank HSK80, 10 HSK 80 tool magazine for automatic tool change, positioning accuracy +/- 0.005, repeatability accuracy +/- 0.001. |
