| Type |

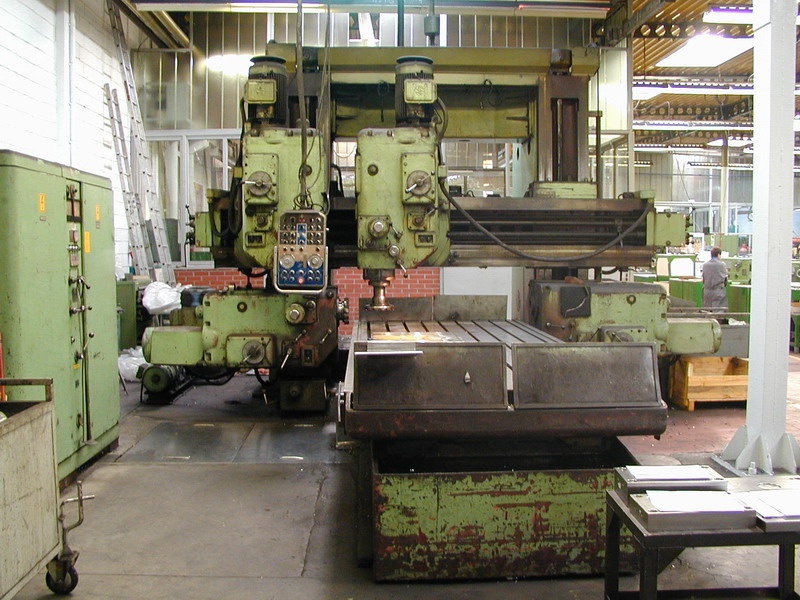

Milling Machine - Console Type |
| Model |
FP20 |
| Manufacturer |
TOS KURIM |
| Year of Manufacture |
1973 |
|
|
|
Specifications - Portal Milling Machine
| Working area (mm) |
2800 x 1500 x 1100 |
| Motor power (kW) |
22 |
| Spindle speed (min-1) |
10 - 500 |
| Feed rate (mm/min) |
25 - 750 ...stroke |
| |
4000 ... high speed stroke |
| Table load capacity (kg) |
10000 |
| Controller |
/ |
Other Characteristics
Accuracy: 0.1 mm, machining without cooling, with crown up to 315 mm in diameter, machining of castings to thickness, operations performed also with rod type milling cutters with 20 mm and larger diameters, face roller milling cutters with 100 mm in diameter and cross-type milling cutters. |
