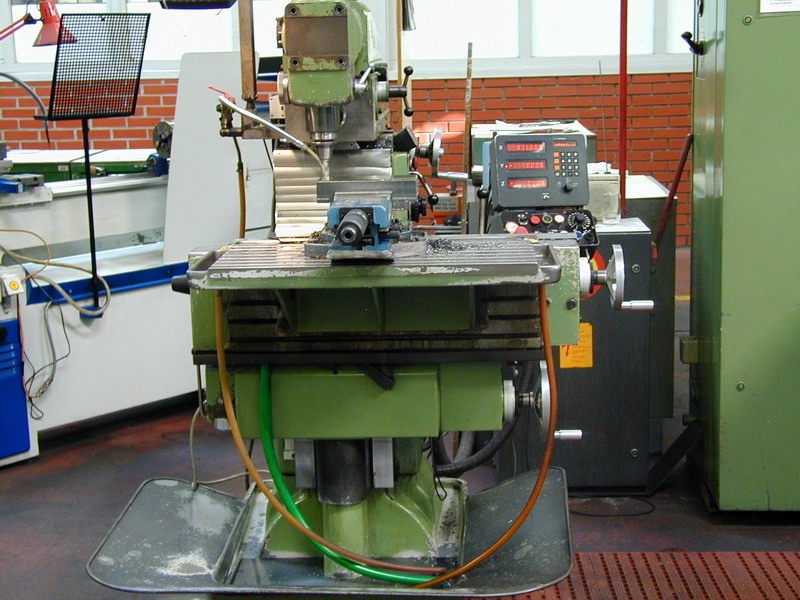

Type |
Milling Machine |
Model |
FP2 |
Manufacturer |
DECKEL |
Year of Manufacture |
1978 |
|
|
|
Specifications - Milling Machine
Working area (mm) |
300 x 150 x 400 |
Motor power (kW) |
2 - 3 |
Spindle speed (min-1) |
25 - 2500 |
Feed rate (mm/min) |
5 - 500 |
Table load capacity (kg) |
150 |
Controller |
/ |
Other Characteristics
Accuracy: 0.01 mm, read-out: digital, milling within H7 tolerance, drilling, reaming and coordinate turning of boreholes up to 30 mm in diameter and 50 mm in depth, clamping in vice up to 150 mm, head inclination in one axis up to 50 degrees in left and right direction. Equipped with dividing head and rotary table.
|
