Type |

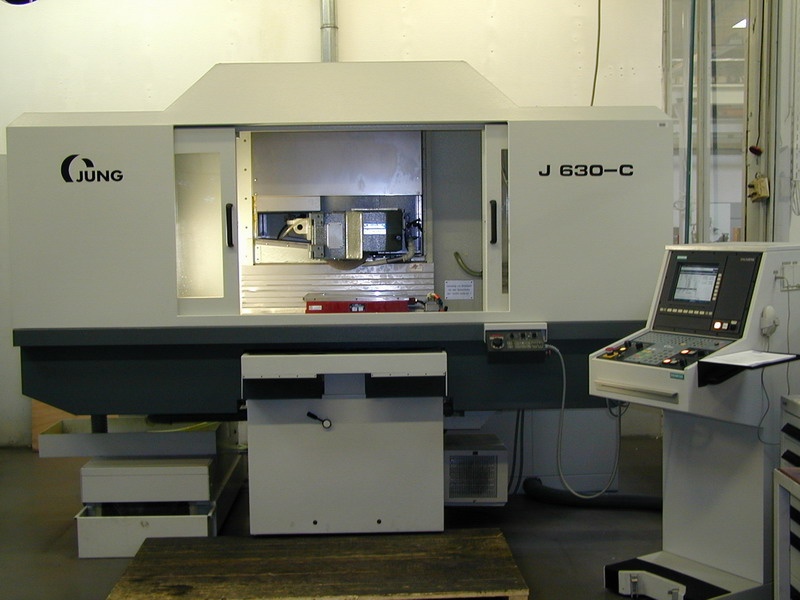

Grinding Machine - CNC |
Model |
JUNG J 630C |
Manufacturer |
JUNG |
Year of Manufacture |
2000 |
|
|
|
Specifications - Grinding Machine
Working area (mm) |
600 x 305 (height 366 mm) |
Table size (mm) |
600 x 250 |
Magnet size (mm) |
600 x 250 |
Magnet capacity (kg) |
130 |
Grinding wheel |
Diameter 300 mm Width 25/30/50 mm Radial wear 45 mm |
Grinding spindle |
Power 10 kW Permissible circumferential speed 35m/s Permissible taper 1:10 |
Machine coordinates |
X –os … Feed rate: 1000 – 24.000 mm/min Y –os … Feed rate: 0.1 – 2000 mm/min Z –os … Feed rate: 0.1 – 2000 mm/min |
Other Characteristics
Controller: SIEMENS, machine enables grinding of contour which can be imported by means of DXF translator, grinding wheel which follows the contour can also be prepared.
|
